Existing Conditions Documentation for Site Planning

Key Deliverables for Accurate Planning

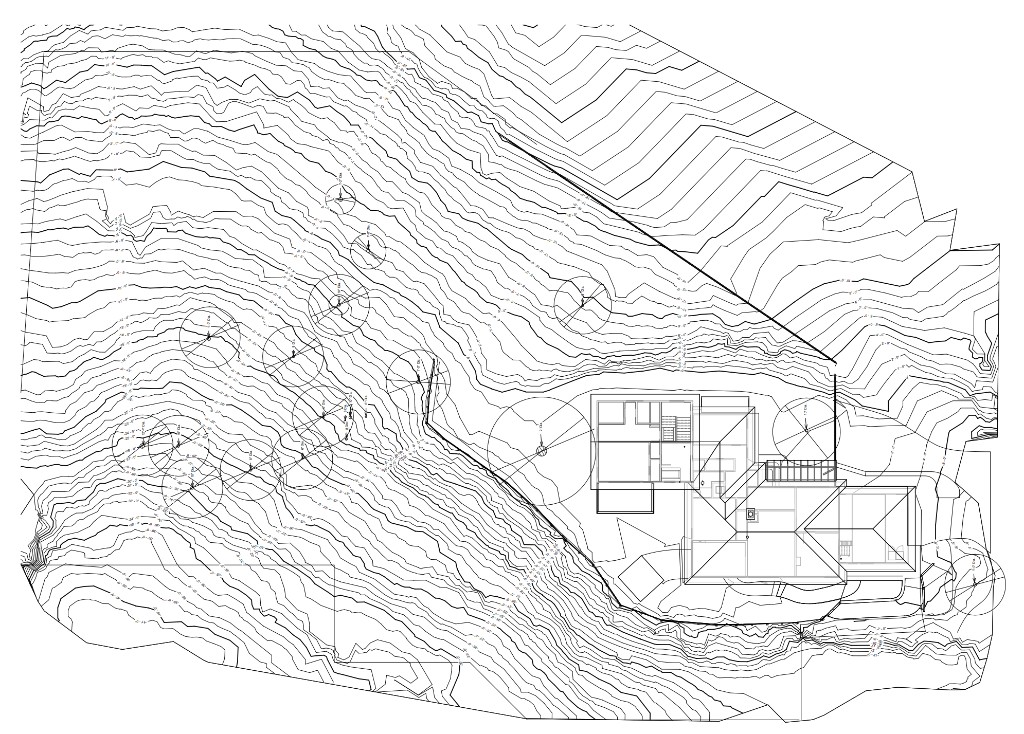

The deliverable package for Existing Conditions Documentation is robust, providing all necessary context in a precise, usable format. The core deliverable is a set of detailed 2D site plans, which are essential for accurate planning and include:

• Accurate topography of the site.
• Locations of significant trees, defined as those greater than four inches in diameter.
• Locations of all site elements, buildings, and hardscape.
• Spot elevations of steps, walls, and planting beds.
• Sill and head heights of windows of any on-site structures, ensuring architectural integration.
• Locations of fences, retaining walls, and neighboring buildings for contextual awareness.

A LiDAR-measured terrain map provides a high-fidelity, highly accurate representation of the existing ground plane that surpasses the detail of standard topographic data. Utilizing state-of-the-art technologies such as LiDAR scanning and drone photography during data collection ensures efficiency and accuracy gathering millions of individual measurements. For instance, a comprehensive LiDAR terrain map ensures the precise locations of walls, paths and protected or Heritage trees allowing them to be accurately identified and seamlessly integrated into the design scheme.

When required, 3D models of the terrain and existing buildings may also be provided. These models offer crucial visual context and function as a versatile, three-dimensional template for conceptualizing design ideas in real space as they relate to structures in 3D and allow for virtual review of landscaping views from inside of the buildings.

How Site Data Informs Design Decisions

Accurate site data is a fundamental tool that informs every creative and practical decision in a project. This documentation allows professionals to fully understand key site features and important details of existing hardscape and built elements, including pools, fences, retaining walls, large stones, water elements, and trellises.

Beyond a physical inventory, the data is crucial for reviewing view corridors, understanding prevailing wind patterns, and analyzing solar orientation. A comprehensive LiDAR terrain map ensures the precise locations of protected or Heritage trees are accurately identified and integrated into the design scheme. By starting with a high-fidelity representation of the existing site, designers can mitigate risks, ensure compliance with local regulations, and unlock the full design potential of the property.

A Streamlined Six-Step Process

The methodology for generating detailed Existing Conditions Documentation is a streamlined, six-step process designed for efficiency and high accuracy:

1. Project Planning: Approximately one hour dedicated to finalizing the scope, required detail, and logistics for the specific site.
2. Data Collection: Typically completed within a single day using state-of-the-art technologies such as LiDAR scanning, 360° photography for a complete visual record, and drone photography for aerial context and topographic mapping.
3. Data Assembly and Cleaning: Raw datasets from the field are merged, processed, and cleaned in preparation for digital modeling.
4. Modeling: The cleaned data is translated into precise digital representations, generating the 2D and 3D models.
5. 2D Plan Preparation: The technical drawings are finalized, annotated, and formatted for professional use.
6. Quality Assurance (QA): A thorough review ensures all documentation meets required standards of completeness and accuracy.

The Value of Early Investment

Investing in professional Existing Conditions Documentation is a preventative measure that yields significant returns by mitigating the risk of far greater expenses later in the project. Typical projects range from $1,000 to $5,000, contingent upon site size, landscape complexity (such as steep terrain or numerous built structures), and the specific level of detail requested.

Most importantly, this early investment avoids costly delays and extensive rework, which are often triggered by inaccurate measurements or unexpected site conditions discovered deep into construction. By eliminating these common pitfalls, the documentation process ensures smoother project execution, minimizes change orders, and ultimately drives higher client satisfaction. High-quality documentation shifts the design process from reactive problem-solving to proactive, informed creation. It serves as the single source of truth for the project, ensuring every plan starts on a powerful, reliable foundation.
